Usage

The binary data files can be converted to ASCII data by the Datafile Binary to ascii.vi from the Datafile.llb or the Binary to Ascii.exe if executables are used. After launching the vi, it comes up in the following shape:

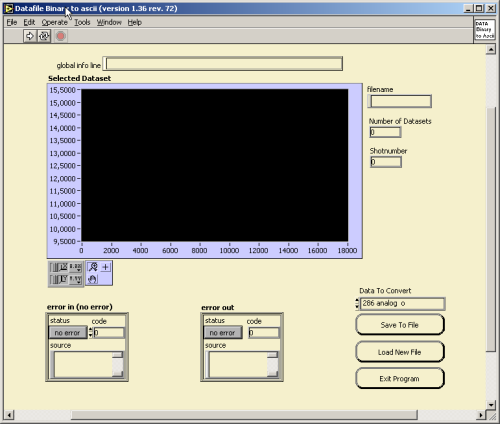

The initially shown vi front panel

The first step is to press the LabView typical Run button.

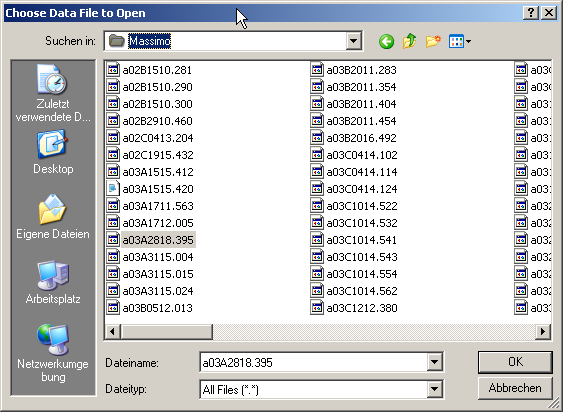

The following file dialog let you select a datafile.

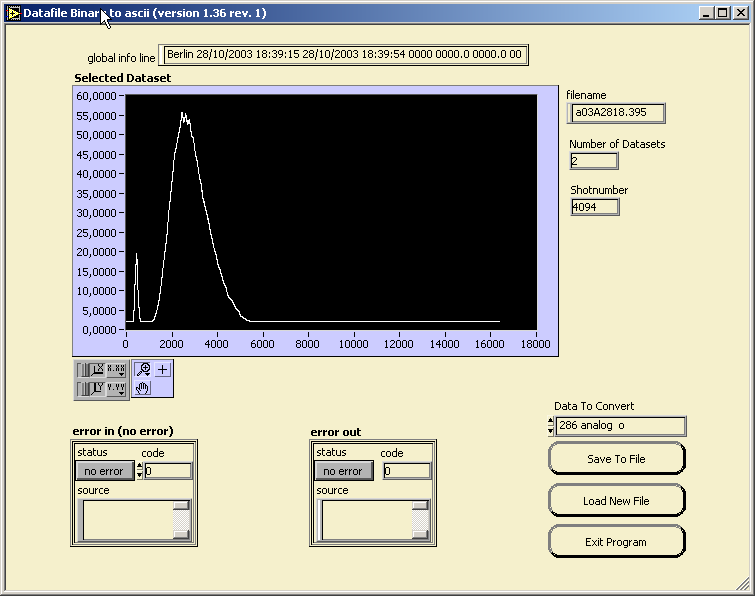

Once the datafile is loaded you will see the first data set in the file displayed in the data area.

Above the data set you will see the global file info which is in more detail described in the file format description.

Other data sets can be selected from the drop down menu.

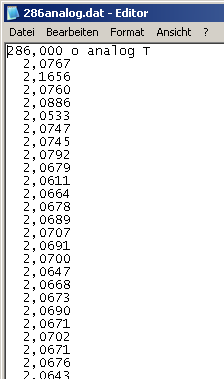

Save to file creates a ASCII column from the selected data set.
