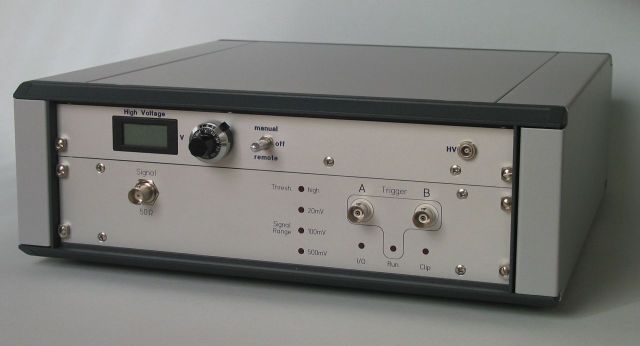

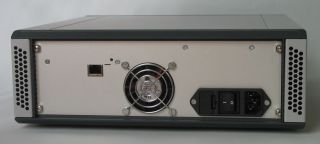

The Rack-1 is a compact and complete one channel solution. It can be equipped with one PMT HV supply, one transient recorder and Ethernet interfaces to control the transient recorder and the PMT.

When equipped with PR05-02 and a Trig-Las the unit is a complete micropulse detection unit, which will get the trigger pulse from the photodiode pickup. It will provide a 7.6km long photon counting trace with 30m wide range bins which can cope with lasers up to 11 kHz. The built in Ethernet controller will perform additional trace averaging so that the system can take up to 3*106 shots without PC interaction.
