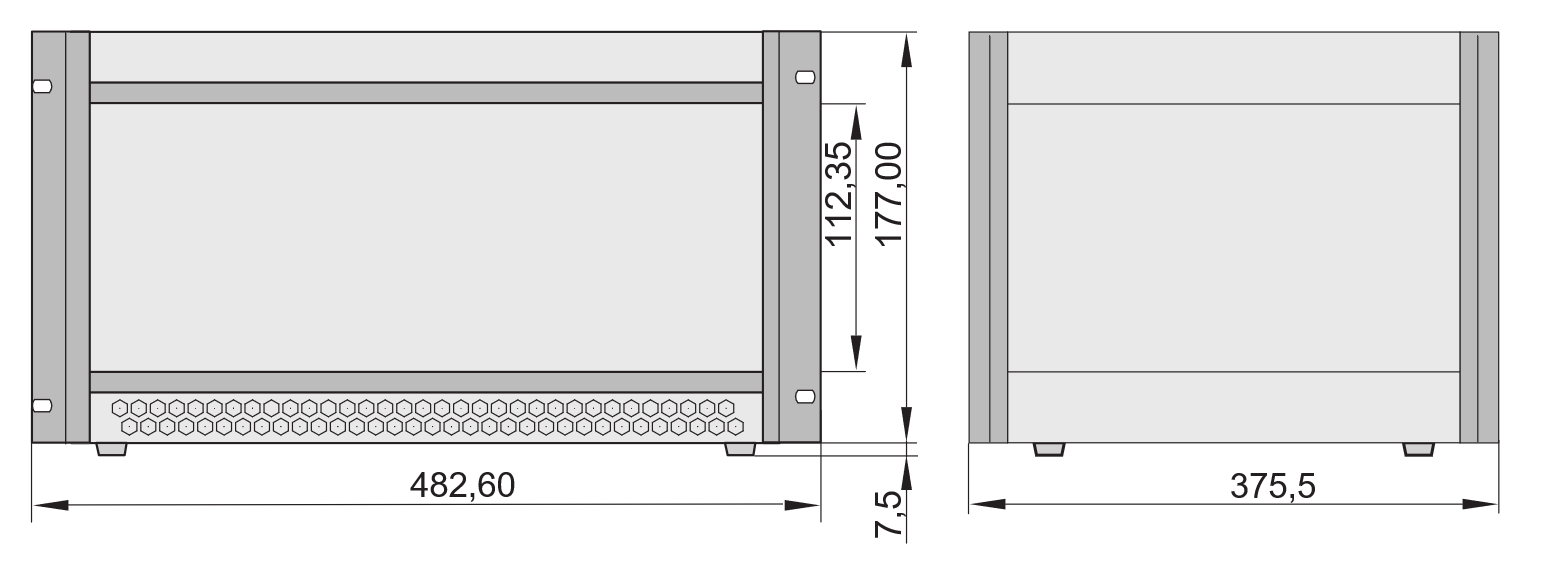

Rack-8-3U

A Rack 8 can hold up to eight Transient Recorder (TR40-16bit-3U or PR40). Additional Power supply modules for APD's or PMT's can be installed instead of the Transient Recorder's. The weight with one Transient Recorder is 14kg and with 8 Transient Recorders 19kg.

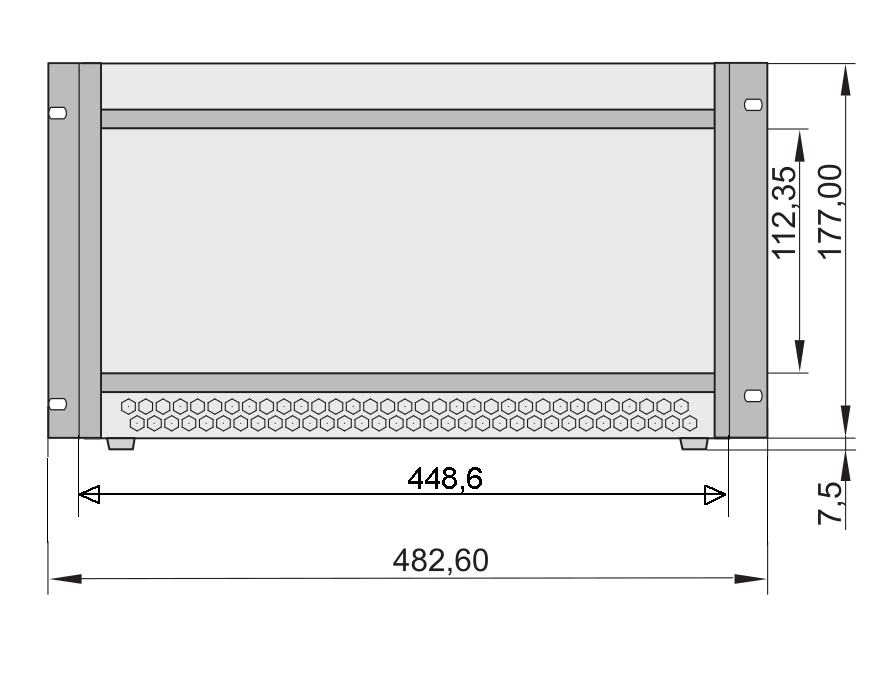

Rack8 - side
Rack8 - side

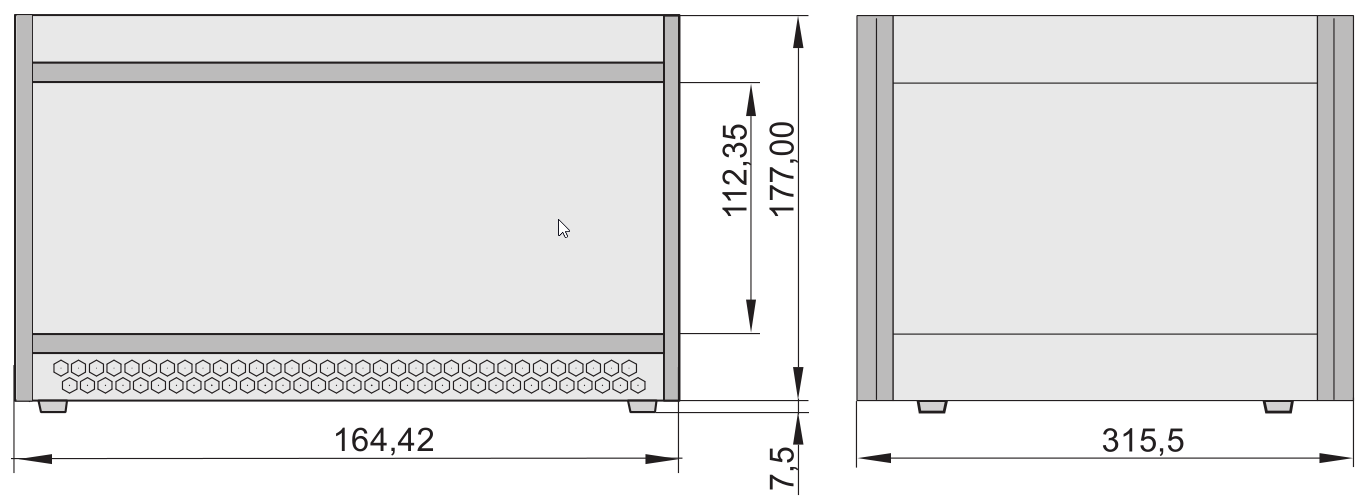

Rack-2-3U

A Rack 2 can hold up to four Transient Recorder (TR40-16bit-3U or PR40). Power supply modules for APD's or PMT's can be installed instead of the Transient Recorder's. The weight with one Transient Recorder is 2kg and with 2 Transient Recorders 4kg.

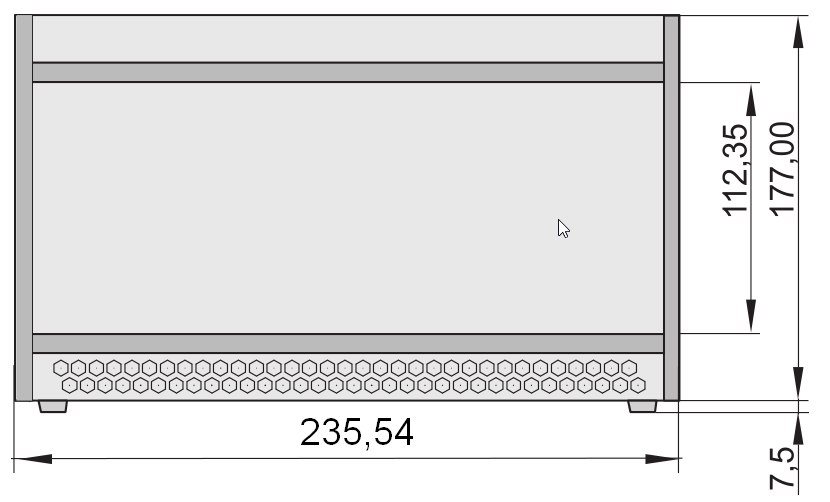

Rack2 - side
Rack1 - side

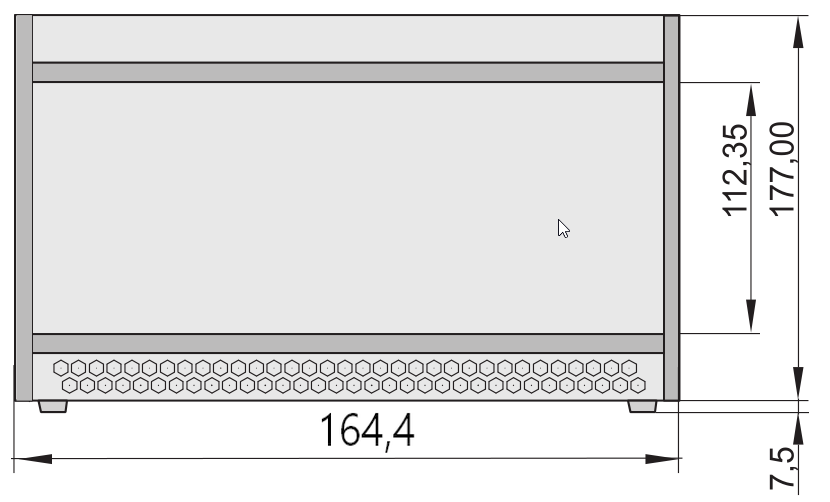

Rack-1-3U

A Rack 1 can hold one Transient Recorder (TR40-16bit-3U or PR40). Power module for one PMT can be installed in addition to the Transient Recorder's. The weight with one Transient Recorder is 1,8kg.

Rack2 - side

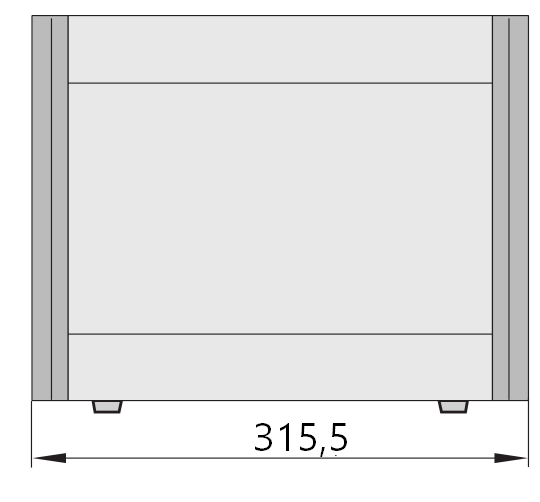

Rack1 - side

Waverider

The Waverider is a complete unit with the power supply integrated.

Rack1 - side
Rack1 - side

Old racks

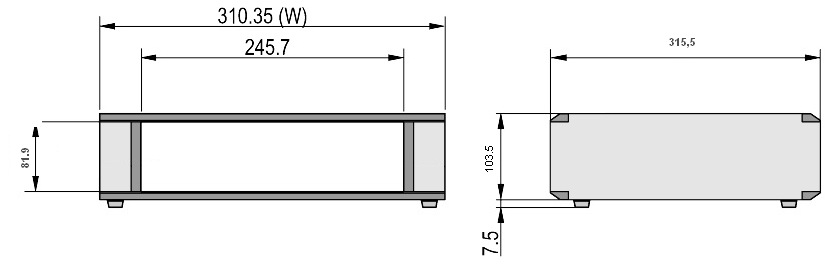

Rack 1

A Rack-1 can hold one Transient Recorder and a PMT Power supply. The weight with one Transient Recorder is 5kg

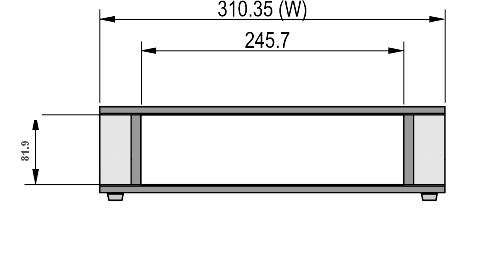

Rack1 - side
Rack1 - side

Rack 2

A Rack 2 can hold up to two Transient Recorder and up to two PMT Power supply's. The weight with two Transient Recorders is 11kg

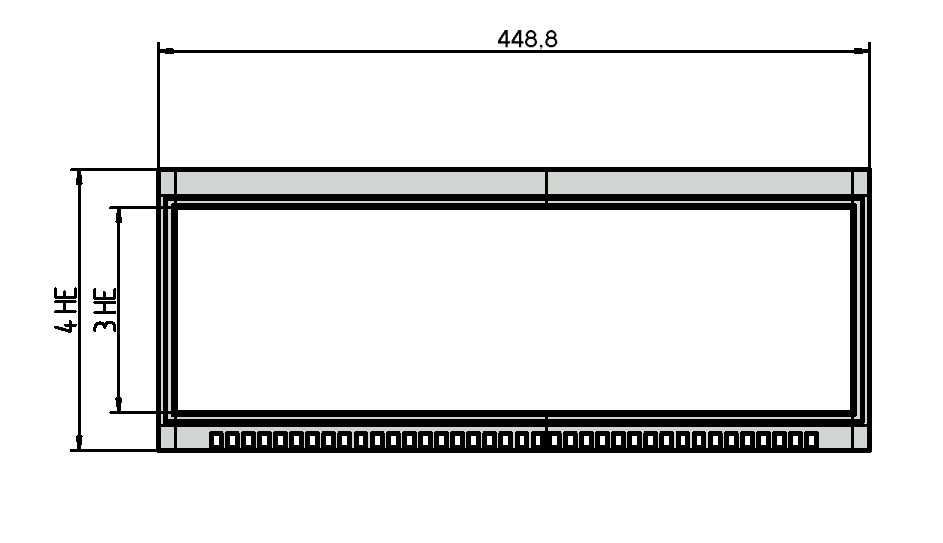

Rack2 -front

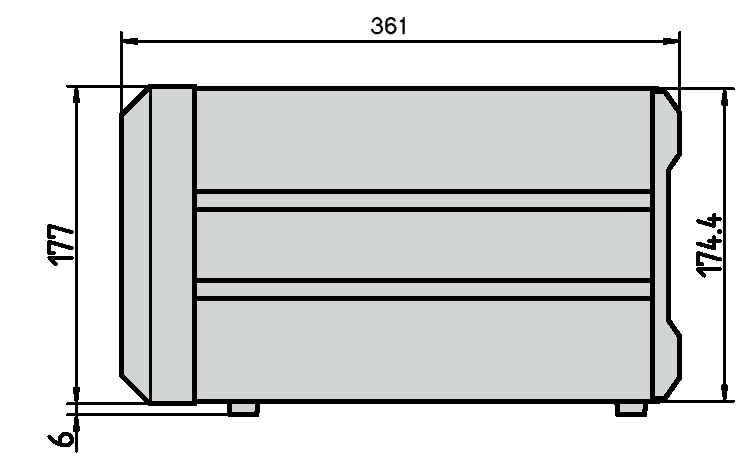

Rack2 - side

Rack 6

A Rack 6 can hold up to six Transient Recorder. Additional Power supply modules for APD's or PMT's can be installed instead of the Transient Recorder's. The weight with one Transient Recorder is 14kg and with 6 Transient Recorders 19kg.

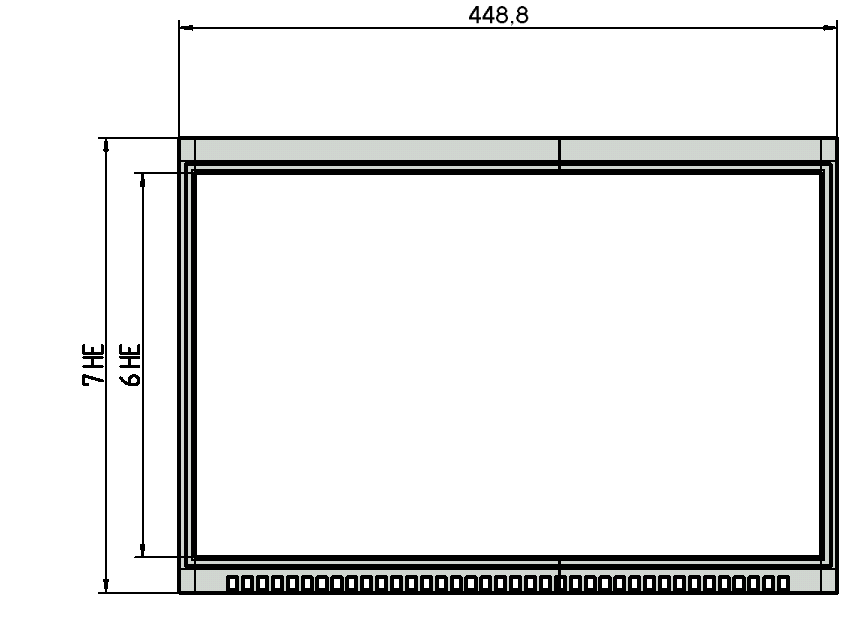

Rack6 - front

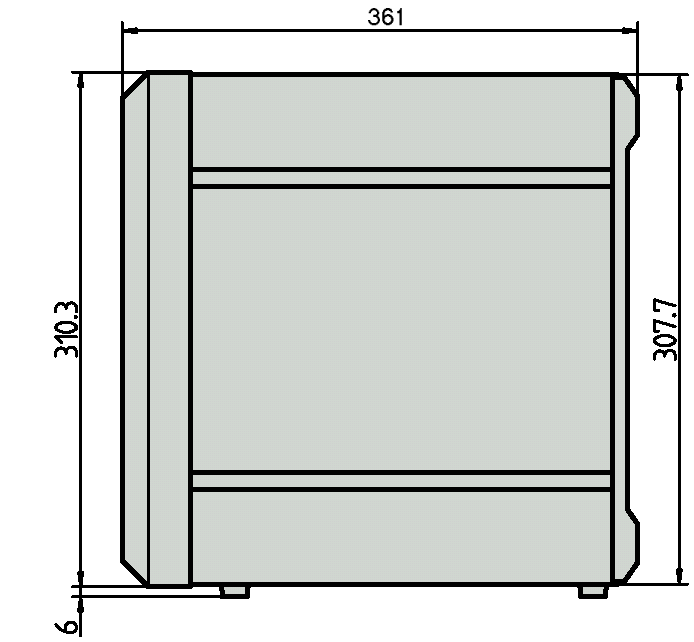

Rack6 - side

Mounting instructions
