Introduction

The Licel Waverider computes multiple power spectra from an fast ADC signal and averages them. From the peak of individual power spectra one can compute the wind velocity.

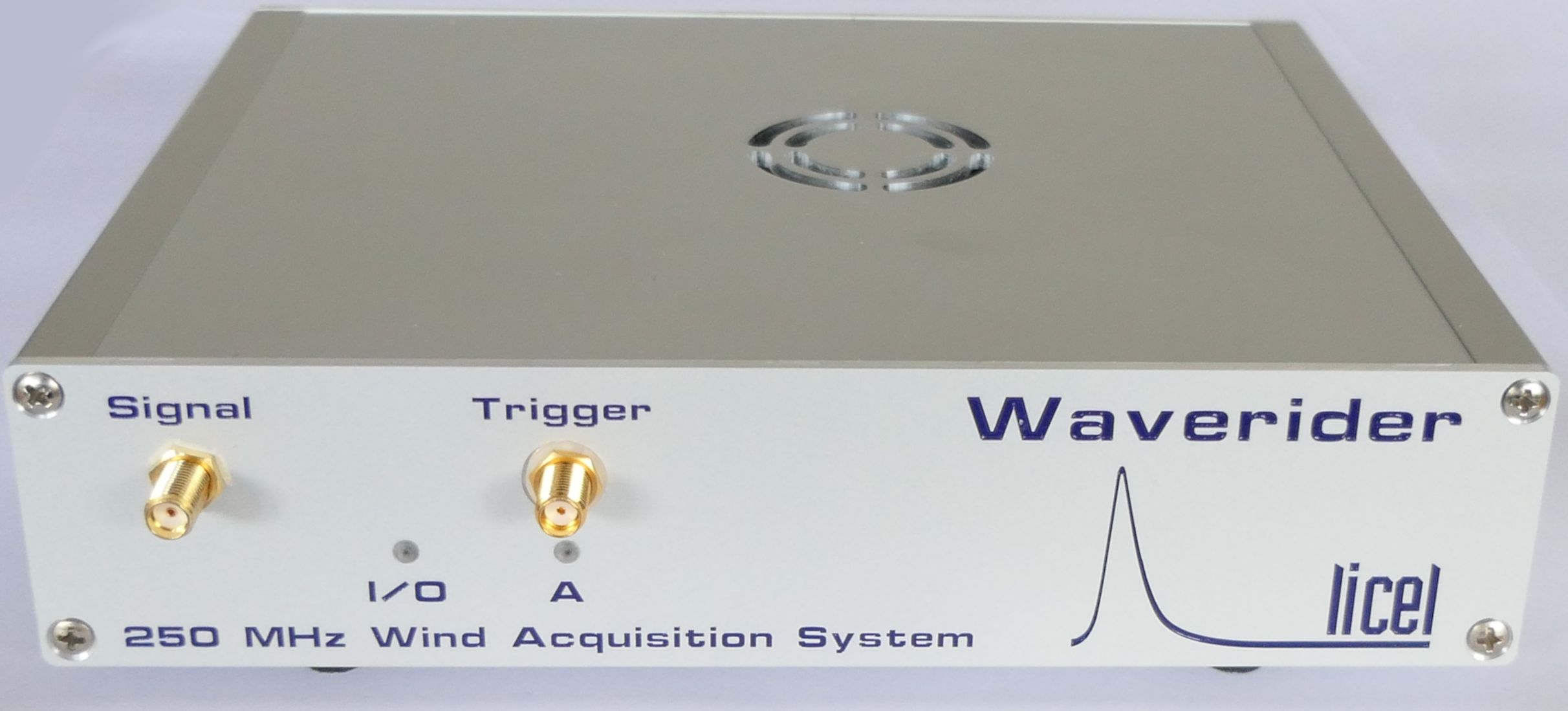

New 250MHz 14 bit Acquisition system

We started to ship in May 2024 the new 250 MHz Waverider systems, which have a better ADC and are a most cost effective solution than the precessor. It can be ordered with up to 4 trigger inputs for Coherent DIAL measurements.

Datasheet 250MHz/14bit , User Manual Quad 250MHz

3.2 Ghz - 12bit Combined Mie Rayleigh Windprofiles

We build the first system for a Wind-Lidar at 532nm with a significant fast ADC to record both the aerosol and the molecular spectra.

First results have been published during the ELC 2023.

F. Fritzsch et al.: Setup and First Measurements of a Novel Coherent Heterodyne Green Doppler Lidar System - Achievements and Challenges, European Lidar Conference, Cluj-Napoca, 13 September 2023

Datasheet 3.2GHz

400MHz 12 bit Acquisition system

It has a better frequency resolution and allows the use of higher frequeny AOM. The system has demonstrated horizontal wind measurements up to 40km in the WindRamp project.

Datasheet 400MHz

Manual

Waverider User Manual

How to install and use the Waverider for wind measurements

Waverider User Manual 3200MHz

How to install and use the Waverider for wind measurements for the 3200MHz system

Programming manual

Programming manual suitable for the C driver. Includes sample applications.

Software

Windows Applications

LabVIEW Sources

LabView Project sources.

Waverider Windows Installer (11 MB)

The Licel Windows applications are installed by running a Windows Installer package (Licel Waverider Acquisition) for easy installation. They require Windows 7, 8 or 10. The LabVIEW Runtime Engine 2018 SP1 (32 bit) is needed. The LabVIEW Runtime Engine should have been installed before running the Waverider Windows Installer. The LabVIEW Runtime Engine 2018 SP1 can be downloaded at https://www.ni.com/en-us/support/downloads/software-products/download.labview.html#354269. If the Licel Waverider Acquisition Software 1.0.0 or higher has already been installed earlier from a Licel CD-ROM the LabVIEW Runtime Engine has been installed, as well. Download this package if you don't want to modify the Licel software or don't have LabVIEW 2018 or higher. Unzip the downloaded file and run setup.exe to install the software. Change List.
