Description
In order to fit the special needs of the Lidar-community we build photomultiplier modules based on a Hamamatsu Mini-PMT. The socket has stabilized last dynodes for the strong near field signal and a protection circuit against high continuous light and a HV supply. We use preselected tubes (photon counting) to deliver a valid analog and photon counting signal over one BNC cable to the transient digitizer
The modules can also be ordered with a gating
Please download a print optimized version of the datasheet.
Technical Facts
| Part Number | PM-HV-xx |  |
|
| PM Type | Hamamatsu R9880 | ||
| Quantum Efficiency, Wavelength dependency, Dark current | Tube data | ||
| PM High Voltage (V) | 0-1000 | ||
| Supply Voltages (V) | +15 |  | |
| Current Limit (μA) | 100 | ||
| Resistance Anode-GND (Mohm) | 1.0 | ||
| Output Connector | BNC (50 Ohm) |
Accessories

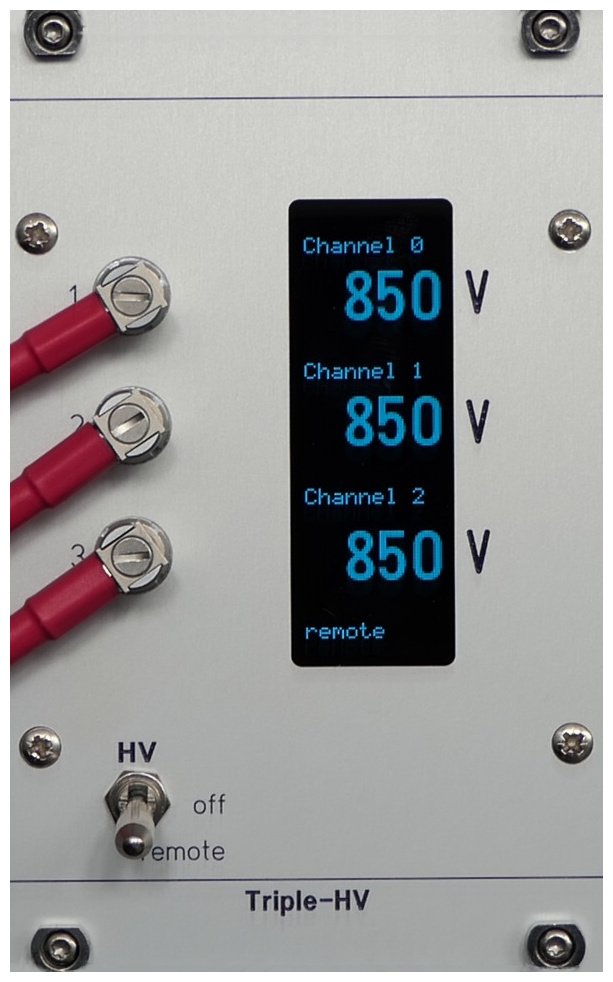

- Quad/Triple HV
- Ethernet based remote control for PMT's
- Racks for the HV modules
Manual
PMT-HV manual in pdf format
Mechanical Dimensions
Drawing as a pdf-fileBack to index
