Introduction
The Licel Near Range Detection System Lidarino closes the gap between the ground in-situ measurements and full overlap region of conventional lidars. Together with a subnanosecond laser or a LED and conventional camera objective one can built very small lidars which have more than 1500 data points in the first 150m. The low laser energy and the fast opening of the objective produce a signal which is good for the photon counting mode of the Lidarino.
High range resolution
- 625 ps time resolution/ 9.4cm range resolution
- trace length dependent high trigger rates (for example 1MHz for a 150m near field system )
- bin length configurable from 0.625ns (9.4cm) to 7us
- 32000 range bins

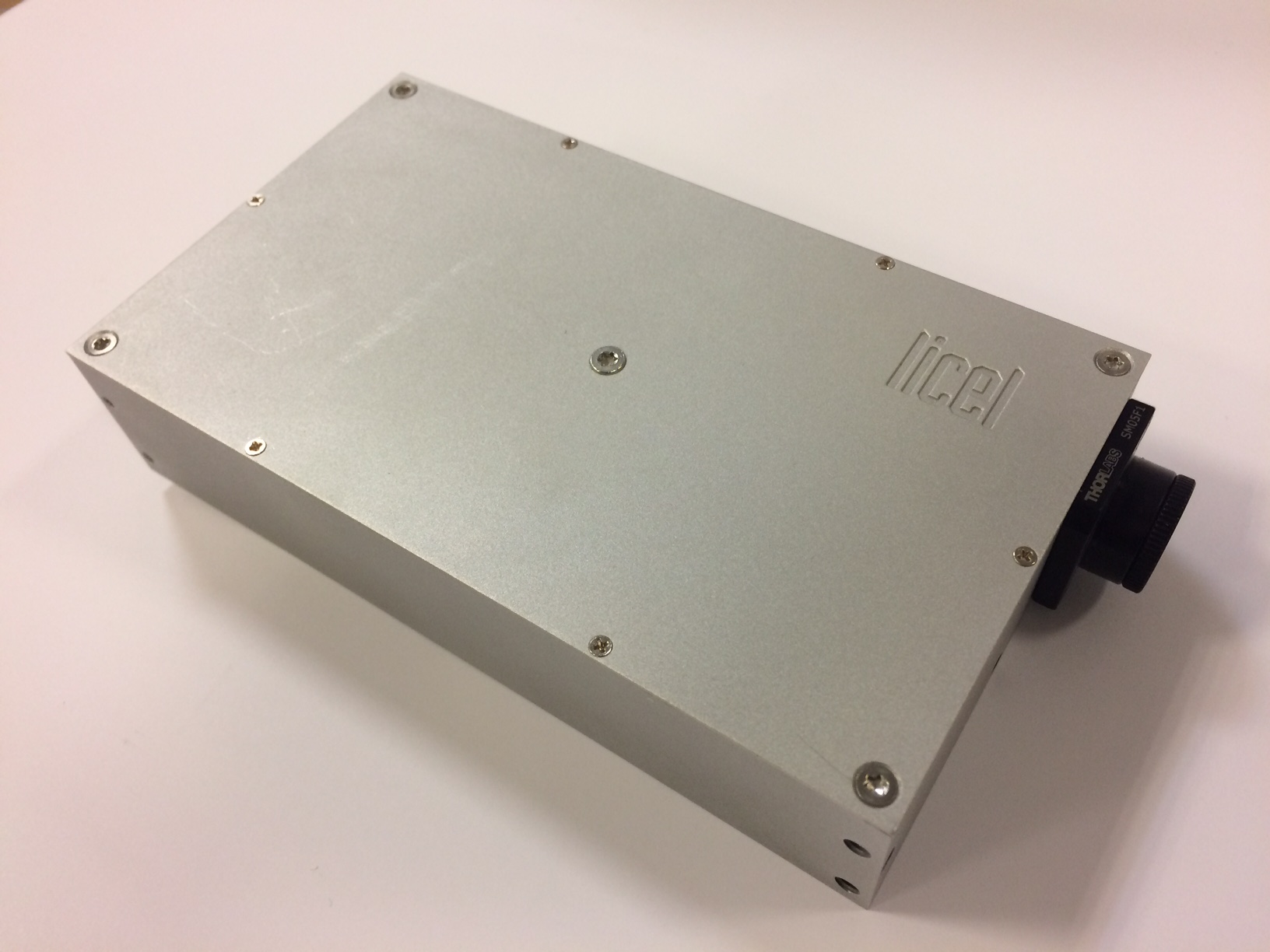

- compact detector head (100 x 70 x 60 mm)
- sync output where the pulse width can be changed with 0.625ns time steps
- 230 MHz sustained photon count rate

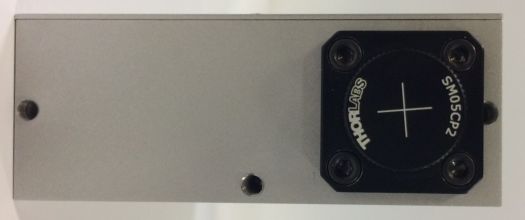

- SM05 Thorlabs lens tube interface
- Datasheet Near Range detection systems
- Documentation - Installation and Reference Manual HR
Software
- The Licel Windows applications require Windows Win7, 8, 10
- The LabVIEW Runtime Engine 2016 (32 bit) is needed. The LabVIEW Runtime Engine 2016 can be downloaded at https://www.ni.com/en-us/support/downloads/software-products/download.labview.html#359550.
- Version 2.00.14 (change list)
- The LabVIEW sources require LabVIEW 2016 Base Package or higher.
- Version 2.00.14 (change list)
C Sources and Sample Application
- The Sample application is compiled for usage under Windows OS.
